The Different Stages Of Manufacturing A Hypodermic Needle!
There are four different stages for the manufacturing of a hypodermic needle. Tube manufacturing, polishing the cannula, assembling the plastic moldings, and sterilising and packaging the final products. Allied Way (India) manufactures advanced hypodermic needle manufacturing machine under these processes to ensure the effective output of the machine. The tube-making stage turns stainless steel plates into pipes, while in the polishing stage, the pipe gets cut to length and polished to provide a sharp cutting edge known as a cannula. Now in the assembly stage cannula gets washed to attach the plastic hubs and caps. The final stage is the sterilisation, assembling and packaging of the final product. We follow all these steps set up by the bar codes and different government authorities. We ensure the best quality product and hence are the leading Hypodermic Needle Making Machine Manufacturers In India.
Since 2000,
Operating in India.
Features Of Product
Our manufactured products come with distinctive specifications and with room for higher upgradation and customisations. Given below are our product's specifications and if you need assistance in understanding the configurations, reach out to us!
Call Us Now
+91-8447962638
Mail Us
vivek@alliedwayindia.com
Specifications of Our Product
- NEEDLE MACHINE SPECIFICATION
-
Basic specification Applicable range 16G-26G Capacity 68000-70000pcs/hrs M/C dimension 11.5M*3.3M*1.8M M/C weight 3000kgs Electric power 415V(50HZ ) Electric power consumption About 13kw Air pressure > 0.6Mpa Air consumption 1500ML/min Main frame material SS41 Electoless plating (base) Stainless steel (body cover) Part section material SS41 Electoless plating S45C Chrome plating A16061 Chromate Jig 60pin,420pcs Alarm system Tower lamp,Buzzer,Segment, Touch screen massage No. of worker 2 Production Process Hub supply -Hub press-Electric discharge -cannula assembly -epoxy bonding -Epoxy harderning -silicone coating -point Inspection -blockage needle test-badness Eject -cap assembly -cap press-Product Ejector
We Are The Foremost Exporters!

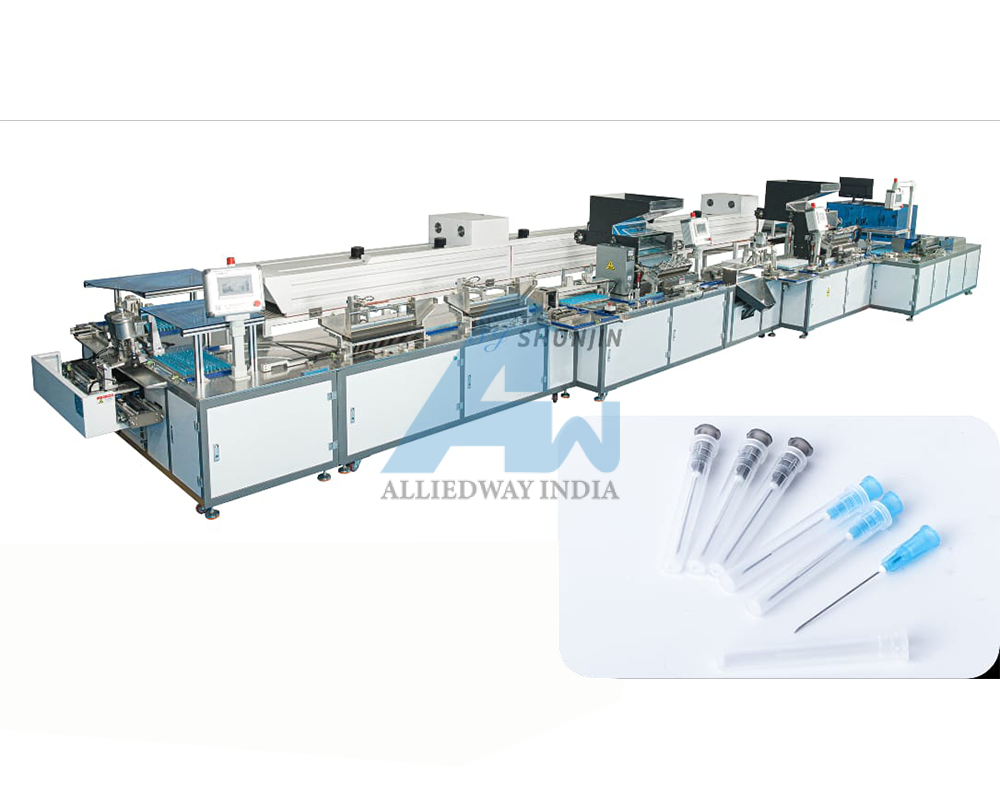

Allied Way (India) has indulged in supplying and manufacturing all sorts of needle-making machines, including hypodermic needle assembly machine to carry out all operations like assembly, packaging, and sterilization in-house.
The greatest merits of our manufacturing system are our comprehensive quality management system and our ability to provide the customer with reliable products. We have strict inspection procedures in all processes, especially in supplying and exporting the consignments.
We have fully developed our supply chain systems to ensure the safe supply of the product to our clients given any location. We are one of the top Hypodermic Needle Making Machine Exporters In India.
Effective Solutions
Our products come with premium quality raw materials and advanced features like precision moulding, automation and controls, and much more. By investing in our products, you are going to have a higher ROI. Below are some of the standard features
- NEEDLE MACHINE SPECIFICATION
-
Part Description Hub Assembly unit Shut type
Used Ringblower hub supplyChina Electric discharge treatment unit 20,000V Cannula loading station Two cannuals loading stations
With three platesCannula assembly unit Lift type,Vacuum type Epoxy Bonding unit Shut type
Used Ringblower hub supplyHub Assembly unit Wheel type
Moving type→Electric actuatorsInspection Blockage,Bending inspection
Camera(Keyence)Point inspection Point,Non-Cannula inspection
Camera(keyence)Ejection of bad needle unit Auto Eject
- NEEDLE MACHINE SPECIFICATION
-
Main parts brand Electric motor STS China Air cylinder SMC Japan Air solenoid valve Jinqi Taiwan Camera processing Keyence Japan PLC Keyence Japan Servo Panasonic Japan Touch Screen(TAIWAN) KINCO Taiwan
